The faceted conical upright supports are designed for mounting lighting equipment in urban and suburban utilitarian lighting systems. The structures are convenient and easy to install and are often used in areas with soft soil. It is manufactured from high-quality rolled steel according to GOST 10704-81. The steel grade is selected depending on the climatic region of operation and the load on the support, taking into account the safety factor, in accordance with the current SP 16.13330.2017. The anti-corrosion coating is applied by hot-dip galvanizing in accordance with GOST 9.307-2021, which ensures the safety of the product for 25-30 years of operation. The supply cable can only be supplied underground.

ATTENTION: the use of supports of this series as load-bearing structures is not allowed!

Modifications Description of the item number Submit request Example of marking: FCSu(60)-5.0-6.5-01 FCSu – faceted conical upright support 60 – upper support diameter 5.0 – above-ground part of the support 6.5 – overall size of the support 02 – internal method of supplying the power cable (aerial supply of the power cable in supports of this type is not allowed) g – coating by hot-dip galvanizing according to GOST 9.307-2021. co – powder coating method according to GOST gco – hot-dip galvanizing + powder coating
Name	Support parameters
	Масса	Ф	H	H1	H2	D1	D2
RAD-ОГКп(60)-5,0-6,5-02	41	Ф2	6500	5000	1500	60	125	Add to cart
RAD-ОГКп(60)-6,0-7,5-02	49	Ф2	7500	6000	1500	60	135	Add to cart
RAD-ОГКп(60)-7,0-9,0-02	81	Ф2	9000	7000	2000	60	150	Add to cart
RAD-ОГКп(76)-8,0-10,0-02	111	Ф4	10000	8000	2000	76	176	Add to cart
RAD-ОГКп(76)-9,0-11,0-02	156	Ф4	11000	9000	2000	76	186	Add to cart
RAD-ОГКп(76)-10,0-12,0-02	177	Ф4	12000	10000	2000	76	196	Add to cart

Description

About the product

The supports of this series are designed for utilitarian lighting of any objects. Brackets and adapters for mounting lighting fixtures are installed on the supports. The use of supports of this series as load-bearing structures is strictly prohibited.

Design

The supports of this series are made of high-quality rolled steel - in accordance with GOST 10704-81 from leading Russian manufacturers. The steel grade is selected depending on the climatic region of operation and the load on the support, taking into account the safety factor, in accordance with the current SP 16.13330.2017.

Coating

The anti-corrosion coating is applied by hot-dip galvanizing in accordance with GOST 9.307-2021, which ensures the safety of the product for 25-30 years of operation. The support can be treated with a decorative paint coating (or powder painting, at the request of the customer) in accordance with the requirements of the current GOST 9.032-74. The basic design of the support DOES NOT IMPLY a layer of decorative coating.

Installation of supports

The faceted conical supports of the FCSu series are designed for installation in the ground, with mounting on the support of brackets for various types of luminaires or park luminaires of various manufacturers and modifications.

Installation of lighting equipment

It is possible to install almost any type of luminaire on the FCSu supports, both directly and with the help of brackets. In each case (depending on the customer’s needs), an individual method of connecting the power cable to the lighting fixture is developed.

Method of supplying the power cable

For supports of this series, the supply cable can only be supplied underground (version 02). When supplying the cable underground to the support, an inspection service hatch is made in its lower above-ground part. The supports of this series are strictly prohibited from being used as power structures. For these purposes, supports of the FCPSu series are used.

The manufacturer reserves the right to make changes that do not impair the quality of the product in the design of individual parts, assemblies and parameters of the lamp without prior notice.

Files

Show all

Drawings

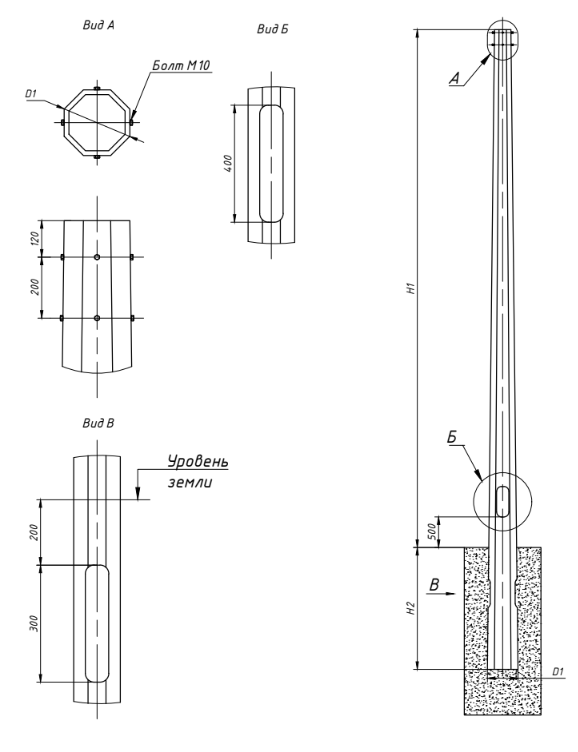

Габаритный чертеж ОГКп
